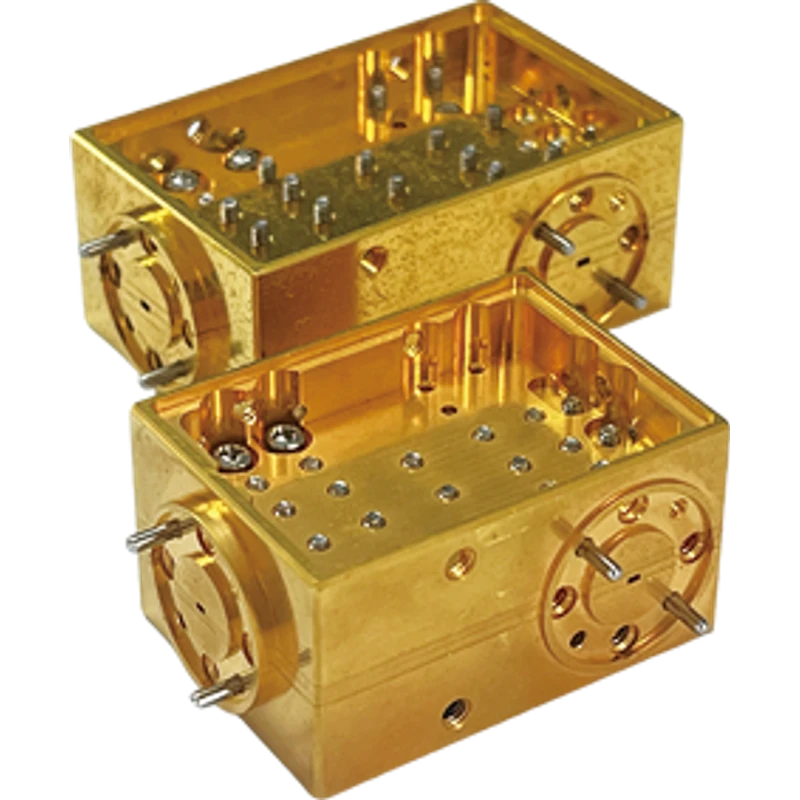

Terahertz Coupler
- Waveguide Input/Output
- Low Insertion Loss
- High Flatness
- High Isolation
- Excellent VSWR
All products can be customized according to customer needs.
Product Parameter
| Model | Frequency Range(GHz) | Coupling(dB) | Directivity(dB) | Port | |
|---|---|---|---|---|---|
| D104060GW | 40-60 | 10 | 30 | WR-19 | |
| D204060GW | 40-60 | 20 | 30 | WR-19 | |
| D105075GW | 50-75 | 10 | 30 | WR-15 | |
| D205075GW | 50-75 | 20 | 30 | WR-15 | |
| D106090GW | 60-90 | 10 | 30 | WR-12 | |
| D206090GW | 60-90 | 20 | 30 | WR-12 | |
| D1075110GW | 75-110 | 10 | 30 | WR-10 | |
| D2075110GW | 75-110 | 20 | 30 | WR-10 | |
| D1090140GW | 90-140 | 10 | 28 | WR-08 | |
| D2090140GW | 90-140 | 20 | 28 | WR-08 | |
| D10110170GW | 110-170 | 10 | 25 | WR-06 | |
| D20110170GW | 110-170 | 20 | 25 | WR-06 | |
| D10140220GW | 140-220 | 10 | 20 | WR-05 | |
| D20140220GW | 140-220 | 20 | 20 | WR-05 |
