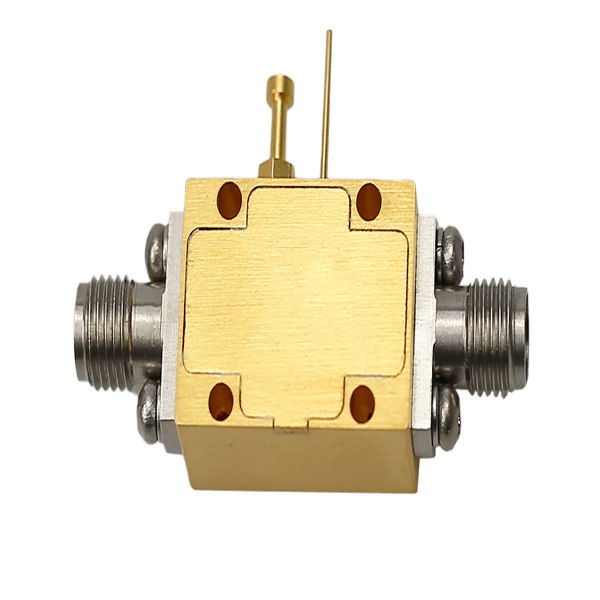

Digitally Controlled Phase Shifter
- Wide frequency range：0.25GHz-37GHz
- High power handling
- Low insertion loss and return loss
All products can be customized according to customer needs.
Product Parameter
| Part Number | Freq Min （G） | Freq Man （G） | Insertion Loss (dB) | Phase Shift Range(°) | VSWR | Step（°） | control Bit | Bias Voltage | Current (mA) | In/Out Port | Inventory | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MZDPH00250050GA | 0.25 | 0.5 | 6 | 360 | 1.8 | 10 | SMA-K | |||||
| MZDPH0204GA | 2 | 4 | 8 | 360 | 1.7 | 8 | SMA-K | |||||
| MZDPH0204GB | 2 | 4 | 8 | 360 | 1.7 | 8 | SMA-Female | |||||
| MZDPH60618GA | 6 | 18 | 13 | 360 | 2 | SMA-Female | ||||||
| MZDPH60618GB | 6 | 18 | 10 | 360 | 1.8 | SMA-Female | ||||||
| MZDPH606018GA | 6 | 18 | 9 | 360 | 2 | SMA-Female | ||||||
| MZDPH0812G8A | 8 | 12 | 10 | 360 | 2 | SMA-Female | ||||||
| MZDPH177212GA2B | 17.7 | 21.2 | 12 | 3.5 | 2 | SMA-Female | ||||||
| MZDPH1826G6A | 18 | 26 | 15.5 | 360 | 3.5 | SMA-Female | ||||||
| MZDPH2732GA3B | 27 | 32 | 8 | 2 | 90 | 3 | 2.92-K | |||||
| MZDPH3237GA6B | 32 | 37 | 8.5 | 2.3 | 5.625 | 6 | +/10% | 2.92-K | ||||
| MZDPH3237GA6B-SR | 32 | 37 | 8.5 | 2.3 | 5.625 | 6 | +/10% | 2.92-K | ||||
| MZDPH0618GA10B | 6 | 18 | 12 | 1.9 | 0.406 | 10 | SMA-K | |||||
| MZDPH1718GA10B | 17 | 18 | 8 | 1.9 | 0.351 | 10 | SMA-K | |||||
| DPH2731GA5B | 27 | 31 | 8 | 2 | 11.25 | 5 | 50 | 2.92-K | ||||
| DPH085011GA6B | 8.5 | 11 | 5 | 1.5 | 2.812 | 6 | SMA-K | |||||
| DPH60618GC | 6 | 18 | 10 | 360 | 1.8 | 6 | SMA-Female | |||||
| DPH80408GA360Z | 4 | 8 | 8 | 360 | 2 | SMA-Female | ||||||
| DPH53237GA360Z | 32 | 37 | 11.5 | 360 | 2 | ±5.6 | 5 | 2.92-Female | ||||
| DPH079085GA360F | 7.9 | 8.5 | 8.5 | 360 | 1.7 | 4 | SMA-Female | |||||
| DPH1517GA360F | 15 | 17 | 12 | 360 | 1.8 | 8 | SMA-Female | |||||
| DPH100812GA360Z | 8 | 12 | 5.5 | 360 | 2 | 10 | SMA-Female |
