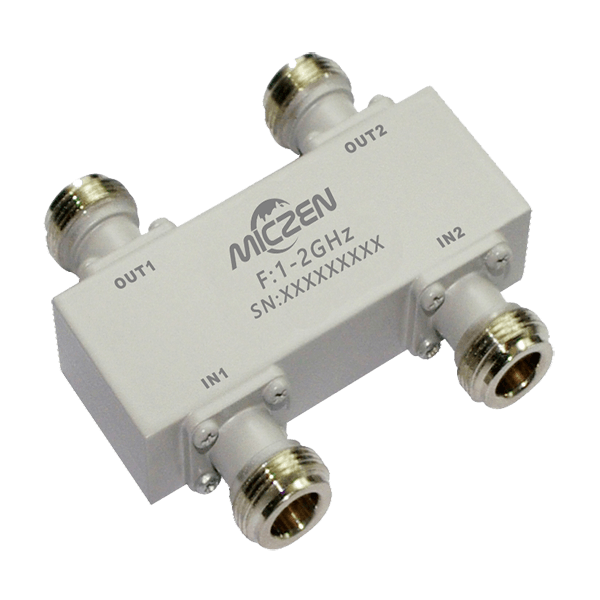

90° Hybrid
- Broadband frequency range from 0.1GHz to 40GHz
- High power handling up to 100W
- Miniaturization
- Low insertion loss
- High stability
All products can be customized according to customer needs.
Product Parameter
| Part Number | Freq Min （G） | Freq Max (G) | Insertion Loss (Typ) | Isolation (dB) | VSWR | Amplitude Unbalance | Phase Unbalance | Power Handling | In/Out Port | Inventory | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MZH9001004GA | 0.1 | 0.4 | 1 | 15 | 1.5 | ±0.8 | ±6 | 50 | SMA-Female | ||
| MZH9003005GA | 0.3 | 0.5 | 0.3 | 22 | 1.15 | ±0.3 | ±2 | 50 | SMA-Female | ||
| MZH9003060GA | 0.3 | 6 | 1.5 | 18 | 1.3 | ±0.9 | ±6 | 30 | SMA-Female | ||
| MZH900501GA | 0.5 | 1 | 0.3 | 24 | 1.2 | ±0.5 | ±2 | 50 | SMA-Female | ||
| MZH900502GA | 0.5 | 2 | 0.5 | 22 | 1.2 | ±0.6 | ±4 | 50 | SMA-Female | ||
| MZH9005040GA | 0.5 | 4 | 1.2 | 18 | 1.35 | ±1.0 | ±8 | 20 | SMA-Female | ||
| MZH900507GB | 0.5 | 7 | 1.3 | 20 | 1.5 | ±1.0 | ±10 | 50 | SMA-Female | ||
| MZH9005090GA | 0.5 | 9 | 1.2 | 20 | 1.4 | ±1.0 | ±10 | 20 | SMA-Female | ||
| MZH900220047GA | 0.22 | 0.47 | 0.6 | 24 | 1.2 | ±0.4 | ±1 | 30 | SMA-Female | ||
| MZH9002004GB | 0.24 | 0.4 | 0.3 | 24 | 1.2 | ±0.5 | ±2 | 50 | SMA-Female | ||
| MZH900430045GA | 0.43 | 0.452 | 0.3 | 25 | 1.2 | ±0.4 | ±2 | 30 | SMA-Female | ||
| MZH9015025GA | 1.5 | 2.5 | 0.3 | 22 | 1.2 | ±0.5 | ±2 | 100 | SMA-Female | ||
| MZH90102GA | 1 | 2 | 0.3 | 25 | 1.2 | ±0.5 | ±2 | 50 | SMA-Female | ||
| MZH90102GN | 1 | 2 | 0.2 | 20 | 1.2 | ±0.5 | ±2 | 50 | N-Female | ||
| MZH90103GA | 1 | 3 | 0.8 | 20 | 1.3 | ±0.7 | ±5 | 50 | SMA-Female | ||
| MZH90104GA | 1 | 4 | 0.8 | 20 | 1.3 | ±0.7 | ±5 | 50 | SMA-Female | ||
| MZH90106GA | 1 | 6 | 0.9 | 15 | 1.4 | ±0.8 | ±5 | 50 | SMA-Female | ||
| MZH90108GA | 1 | 8 | 1 | 18 | 1.3 | ±0.6 | ±5 | 50 | SMA-Female | ||
| MZH90118GA | 1 | 18 | 1.2 | 16 | 1.4 | ±1.0 | ±8 | 50 | SMA-Female | ||
| MZH90218502415GA | 2.185 | 2.415 | 0.3 | 22 | 1.2 | ±0.5 | ±2 | 50 | SMA-Female | ||
| MZH90204GA | 2 | 4 | 0.3 | 22 | 1.2 | ±0.5 | ±2 | 50 | SMA-Female | ||
| MZH90204GN | 2 | 4 | 0.4 | 20 | 1.2 | ±0.6 | ±3 | 50 | N-Female | ||
| MZH900204GC | 2 | 4 | 3.3±0.3 | 20 | 1.3 | ±1.0 | ±4 | 30 | N-Female | ||
| MZH90206GA | 2 | 6 | 0.5 | 20 | 1.2 | ±0.5 | ±4 | 50 | SMA-Female | ||
| MZH90208GA | 2 | 8 | 0.65 | 20 | 1.2 | ±0.6 | ±5 | 50 | SMA-Female | ||
| QLH90215GA | 2 | 15 | 1.2 | 15 | 1.3 | ±0.7 | ±10 | 20 | SMA-Female | ||
| MZH90218GA | 2 | 18 | 1.7 | 15 | 1.5 | ±0.7 | ±10 | 50 | SMA-Female | ||
| MZH902265GA | 2 | 26.5 | 2 | 11 | 1.8 | ±1.5 | ±12 | 20 | SMA-Female | ||
| MZH90240GA | 2 | 40 | 2 | 11 | 1.8 | ±1.5 | ±12 | 20 | 2.92-Female | ||
| MZH9034084GA | 3.4 | 8.4 | 0.6 | 20 | 1.15 | ±0.4 | ±4 | 50 | SMA-Female | ||
| MZH9036042GA | 3.6 | 4.2 | 0.2 | 20 | 1.2 | ±0.5 | ±3 | 30 | SMA-Female | ||
| MZH90309GA | 3 | 9 | 0.6 | 20 | 1.3 | ±0.5 | ±4 | 50 | SMA-Female | ||
| MZH90408GA | 4 | 8 | 0.35 | 18 | 1.35 | ±0.5 | ±3 | 50 | SMA-Female | ||
| MZH90408GB | 4 | 8 | 0.4 | 24 | 1.3 | ±0.3 | ±3 | N-Female | |||
| MZH90418GA | 4 | 18 | 1.6 | 15 | 1.6 | ±0.7 | ±8 | 50 | SMA-Female | ||
| MZH90618GA | 6 | 18 | 0.8 | 18 | 1.4 | ±0.4 | ±4 | 50 | SMA-Female | ||
| MZH90818GA | 8 | 18 | 1 | 16 | 1.5 | ±0.6 | ±5 | 30 | SMA-Female | ||
| MZH90818GB | 8 | 18 | 1.2 | 17 | 1.45 | ±0.6 | ±5 | SMA-Female | |||
| MZH90915GB | 9 | 15 | 1 | 18 | 1.4 | ±0.5 | ±4 | N-Female | |||
| MZH90915GC | 9 | 15 | 1.2 | 16 | 1.45 | ±0.7 | ±5 | 20 | SMA-Female/N-Female | ||
| MZH91113GA | 11 | 13 | 1.3 | 15 | 1.5 | ±0.7 | ±3 | 50 | SMA-Female | ||
| MZH91840GB | 18 | 40 | 2 | 10 | 1.8 | ±1.5 | ±12 | 20 | 2.92-Female | ||
| MZH922572260GA | 22.57284 | 22.60284 | 0.7 | 18 | 1.3 | ±0.4 | ±5 | 20 | 2.92-Female | ||
| MZH92226GA | 22 | 26 | 1.2 | 12 | 1.7 | ±0.7 | ±10 | 10 | SMA-Female | ||
| MZH926540GC | 26.5 | 40 | 0.5 | 30 | 1.2 | ±1.0 | ±10 | 30 | FBP320 (UG-599/U) | ||
| MZH92627GA | 26 | 27 | 1.4 | 12 | 1.5 | ±0.9 | ±3 | 30 | SMA-Female | ||
| MZH904400525GA | 4.4 | 5.25 | 0.3 | 22 | 1.2 | ±0.3 | ±2 | 50 | SMA-Female | ||
| H9014265GA | 1.4 | 26.5 | 1.2 | 18 | 1.5 | ±0.7 | ±8 | 20 | SMA-Female | ||
| H9017265GA | 1.7 | 26.5 | 1 | 18 | 1.5 | ±0.6 | ±7 | 20 | SMA-Female | ||
| H9100265GA | 10 | 26.5 | 0.9 | 15 | 1.5 | ±0.5 | ±5 | 20 | SMA-Female | ||
| H907250775GA | 7.25 | 7.75 | 0.5 | 22 | 1.2 | ±0.4 | ±4 | 20 | SMA-Female | ||
| H9105150GA | 10.5 | 15 | 1 | 15 | 1.3 | ±0.5 | ±5 | 10 | SMA-Female | ||
| H9005080GA | 0.5 | 8 | 1.5 | 18 | 1.3 | ±1.0 | ±10 | 20 | SMA-Female | ||
| H900710125GA | 0.71 | 1.25 | 0.5 | 20 | 1.2 | ±0.3 | ±2 | 20 | SMA-Female | ||
| QLH90618GC | 6 | 18 | 1 | 1.3 | ±0.5 | ±4 | SMA-Female | ||||
| QLH91840GA | 18 | 40 | 1.5 | 1.45 | ±0.6 | ±7 | 2.92-Female | ||||
| QLH90106GB | 1 | 6 | 0.8 | 1.2 | ±0.45 | ±2 | SMA-Female | ||||
| H902250400MA | 0.225 | 0.4 | 0.25 | 23 | 1.2 | ±0.5 | ±1.5 | 50W | SMA-Female | ||
| H90240GB | 2 | 40 | 2.2 | 12 | 1.5 | ±1.4 | ±14 | 20W | 2.92-Female | ||
| H90915GA | 9 | 15 | 1 | 16 | 1.5 | ±0.6 | ±5 | 20W | SMA-Female | ||
| H90915GD | 9 | 15 | 1.2 | 16 | 1.45 | ±0.6 | ±5 | 20W | SMA-Female |
